Safety Tips When Installing Flexible Duct Connectors

A Practical Guide to Prevent Failures, Improve HVAC Performance, and Ensure Long-Term Reliability.

When engineers and contractors search for flexible duct connector installation, they are often focused on one goal: preventing system failure while ensuring safe, efficient operation.

Flexible duct connectors may look simple, but in real-world HVAC and industrial systems, they are critical components that:

• Isolate vibration
• Reduce noise transmission
• Compensate for thermal expansion
• Protect ductwork and equipment

However, improper installation can quickly turn this small component into a major failure point—causing air leakage, structural stress, safety hazards, and expensive downtime.

This guide combines practical field experience and engineering principles to help you install flexible duct connectors correctly, safely, and efficiently.

What Is a Flexible Duct Connector?

A flexible duct connector is typically constructed from high-performance fabric (such as silicone-coated fiberglass) bonded between metal strips. It is installed between mechanical equipment (fans, AHUs) and rigid duct systems.

Core Functions:

• Absorb mechanical vibration
• Reduce noise transfer
• Allow controlled movement (thermal or mechanical)
• Maintain an airtight seal

Close-up view of the internal fabric structure of a flexible duct connector, showing layered material design for enhanced flexibility and durability.

Why Proper Installation Matters

Even a high-quality connector will fail if installed incorrectly.

Common consequences of poor installation:

• Air leakage → energy loss
• Excess vibration → equipment damage
• Fabric tearing → system shutdown
• Noise transmission → poor indoor environment
• Safety risks → especially in high-temperature or chemical systems

In industrial environments, these issues can escalate into production downtime and costly repairs.

Safety Tip #1: Select the Right Connector for Your Application

Before installation begins, always verify that the connector is suitable for the working conditions.

Key Selection Factors:

Using an incorrect material (e.g., low-temperature fabric in high-heat systems) will lead to premature failure or safety hazards.

Safety Tip #2: Inspect All Components Before Installation

Never install a connector without inspection.

Check for:

• Fabric defects (cracks, delamination, weak seams)
• Correct dimensions and alignment
• Clean, smooth metal edges (no burrs)
• Matching bolt holes and flanges

Even minor defects can expand under vibration and pressure, leading to early failure.

Safety Tip #3: Control Connector Length and Position

One of the most overlooked factors is connector length.

Best Practices:

• Keep connectors short and straight
• Avoid excessive slack
• Ensure proper alignment before fixing

Why It Matters:

• Too long → vibration instability & airflow loss
• Too short → excessive tension & tearing

The connector should sit naturally between two aligned duct sections without force.

Safety Tip #4: Avoid Twisting, Kinking, or Misalignment

Flexible connectors must be installed in a neutral, stress-free position.

Avoid:

• Twisting during installation
• Sharp bends or folds
• Forced alignment

Risks:

• Uneven stress distribution
• Reduced vibration isolation
• Fabric fatigue and rupture

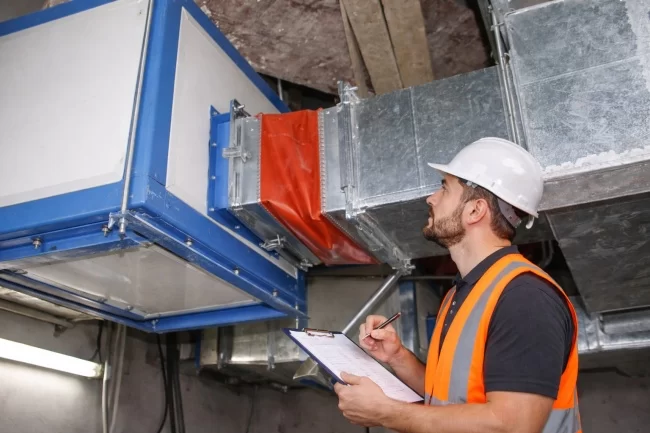

Technician inspect a flexible duct connector after installation

Safety Tip #5: Use Proper Fastening Techniques

Improper fastening is one of the leading causes of connector failure.

Follow These Rules:

• Do not overtighten bolts (prevents fabric damage)
• Use backing washers to distribute load
• Ensure flange surfaces are smooth
• Follow recommended torque values

Over-compression can weaken the fabric, while under-tightening can cause leaks.

Safety Tip #6: Allow for Movement (Critical Engineering Principle)

Flexible duct connectors are designed to handle movement—but only within limits.

Types of Movement:

• Axial: expansion and compression
• Lateral: side-to-side movement
• Angular: deflection at an angle

Installation Rule:

Ensure the connector has enough slack to absorb movement without stretching to its limit.

Ignoring movement direction is a common cause of:

• Fabric tearing
• Joint failure
• Reduced lifespan

Safety Tip #7: Ensure Airtight Sealing

Air leakage directly affects system efficiency.

To ensure proper sealing:

• Use suitable sealants or tapes
• Tighten fasteners evenly
• Check for visible gaps

Even small leaks can lead to significant energy waste over time.

Safety Tip #8: Provide Proper Support and Clearance

Flexible duct connectors are not load-bearing components.

Installation Guidelines:

• Support adjacent ductwork properly
• Do not allow the connector to carry weight
• Maintain clearance from surrounding structures

Also ensure:

• No rubbing against sharp edges
• No contact with moving parts
• Adequate space for inspection and maintenance

Safety Tip #9: Grounding in Hazardous Environments

In systems handling:

• Flammable gases
• Dust
• Chemical fumes

Static electricity can become a serious risk.

Solution:

• Use connectors with conductive layers
• Install grounding straps if required

This prevents static buildup and potential ignition hazards.

Safety Tip #10: Post-Installation Inspection Checklist

Before system startup, verify:

• Connector is centered and untwisted
• All bolts are properly tightened
• No fabric contact with sharp edges
• Movement allowance is sufficient
• Sealing is complete and airtight
• Grounding is properly connected (if required)

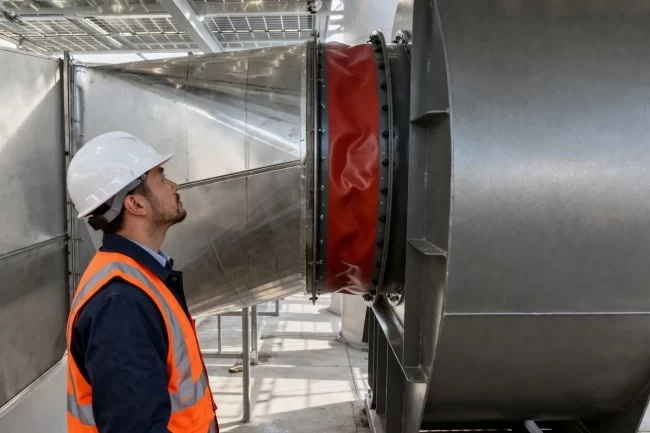

Technician inspect a flexible duct connector during installation

Real-World Case: Installation Error Leading to Failure

A manufacturing facility installed a flexible duct connector in a high-temperature exhaust system.

What went wrong:

• Bolts were overtightened
• No backing washers were used
• Connector was slightly misaligned

Result:

• Fabric tore at the bolt holes within weeks
• Hot air leakage caused emergency shutdown
• Repair and downtime costs exceeded thousands of dollars

Lesson: Small installation mistakes can lead to major operational losses.

Common Mistakes to Avoid

• Using incorrect materials for temperature or chemicals
• Installing connectors too long or too tight
• Ignoring movement direction
• Over-tightening fasteners
• Allowing twisting or misalignment
• Skipping inspection

Conclusion: Safety Is the Key to Performance

Installing a flexible duct connector is not just a routine task—it is a critical step that directly impacts system safety, efficiency, and lifespan.

By applying the best practices in this guide, you can:

• Prevent costly failures
• Improve HVAC system efficiency
• Extend service life
• Ensure safe operation in demanding environments
