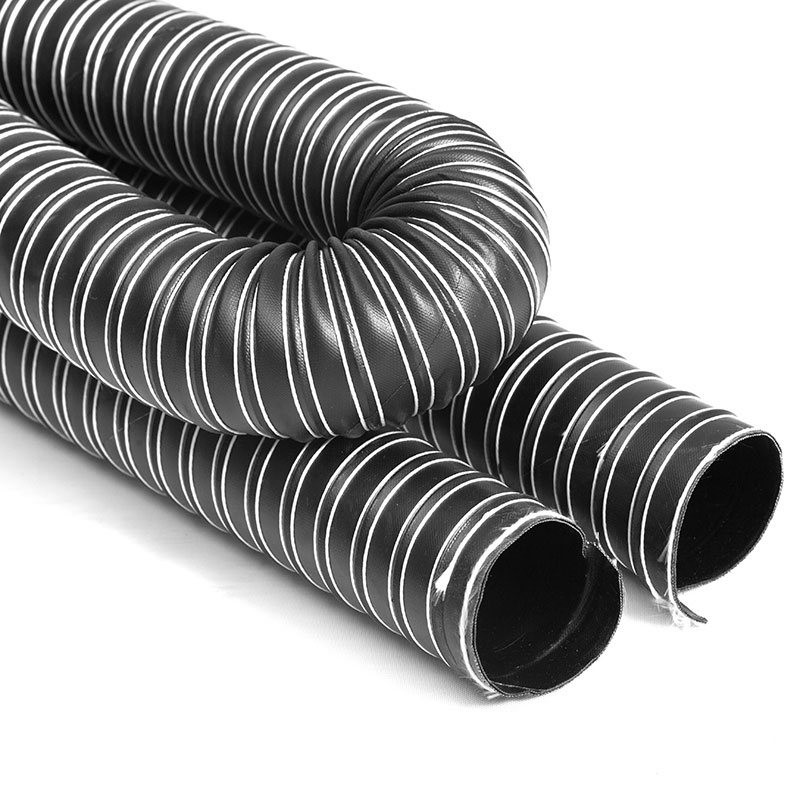

2 ply High Temperature Silicone Rubber Hose (SIL Two)
The silicone rubber hoses with very good heat resistance.
They have a spring-steel wire support helix prevents it from collapsing. Express high performance for cold and hot ventilation systems
Flex hose can be divided into positive pressure and vacuum pressure. The positive pressure air duct is used for exhaust or ventilation; the vacuum pressure air duct is used for suction.
2 ply High Temperature Silicone Rubber Hose (SIL Two)
The silicone rubber hoses with very good heat resistance.
They have a spring-steel wire support helix prevents it from collapsing. Express high performance for cold and hot ventilation systems
Flex hose can be divided into positive pressure and vacuum pressure. The positive pressure air duct is used for exhaust or ventilation; the vacuum pressure air duct is used for suction.
I.D. (In) | I.D. (mm) | O.D.(mm) | Pressure (bar) | Vacuum (bar) | Weight kg/m | Length (m) | IItem No. |
---|---|---|---|---|---|---|---|
0.63 | 16 | 19 | 3.20 | 0.80 | 0.11 | 4 | SH2-0016-R |
0.75 | 19 | 22 | 3.00 | 0.73 | 0.11 | 4 | SH2-0019-R |
1 | 25 | 27 | 2.80 | 0.71 | 0.13 | 4 | SH2-0025-R |
1.5 | 38 | 40 | 2.60 | 0.60 | 0.20 | 4 | SH2-0038-R |
1.65 | 42 | 44 | 2.60 | 0.59 | 0.22 | 4 | SH2-0042-R |
1.75 | 45 | 47 | 2.60 | 0.58 | 0.24 | 4 | SH2-0045-R |
2 | 51 | 54 | 2.60 | 0.52 | 0.26 | 4 | SH2-0051-R |
2.5 | 63 | 66 | 2.40 | 0.46 | 0.33 | 4 | SH2-0063-R |
3 | 76 | 80 | 2.10 | 0.43 | 0.38 | 4 | SH2-0076-R |
3.26 | 83 | 87 | 2.10 | 0.41 | 0.43 | 4 | SH2-0083-R |
3.5 | 90 | 94 | 2.00 | 0.40 | 0.46 | 4 | SH2-0090-R |
4 | 102 | 106 | 1.90 | 0.35 | 0.48 | 4 | SH2-0102-R |
4.5 | 114 | 118 | 1.50 | 0.30 | 0.55 | 4 | SH2-0114-R |
5 | 127 | 131 | 1.40 | 0.23 | 0.64 | 4 | SH2-0127-R |
5.5 | 140 | 145 | 1.30 | 0.20 | 0.66 | 4 | SH2-0140-R |
6 | 152 | 157 | 1.20 | 0.17 | 0.76 | 4 | SH2-0152-R |
6.3 | 159 | 163 | 1.10 | 0.16 | 0.80 | 4 | SH2-0159-R |
6.5 | 165 | 170 | 1.10 | 0.15 | 0.82 | 4 | SH2-0165-R |
7 | 180 | 185 | 1.00 | 0.12 | 0.93 | 4 | SH2-0180-R |
8 | 203 | 208 | 0.70 | 0.09 | 1.10 | 4 | SH2-0203-R |
10 | 254 | 259 | 0.50 | 0.07 | 1.32 | 4 | SH2-0254-R |
12 | 306 | 310 | 0.50 | 0.06 | 1.63 | 4 | SH2-0305-R |
