HVAC Standards for Flexible Duct Connectors You Should Know

When designing or maintaining HVAC systems, the flexible duct connector is often an unsung hero. It absorbs vibration, compensates for thermal expansion, and connects different sections of ductwork. However, not all connectors are created equal, and using one that doesn’t meet industry standards can lead to system failure, safety hazards, and costly downtime.

This guide covers the essential HVAC standards you need to know for flexible duct connectors, and why materials like silicone-coated fiberglass have become the industry benchmark for high-performance applications.

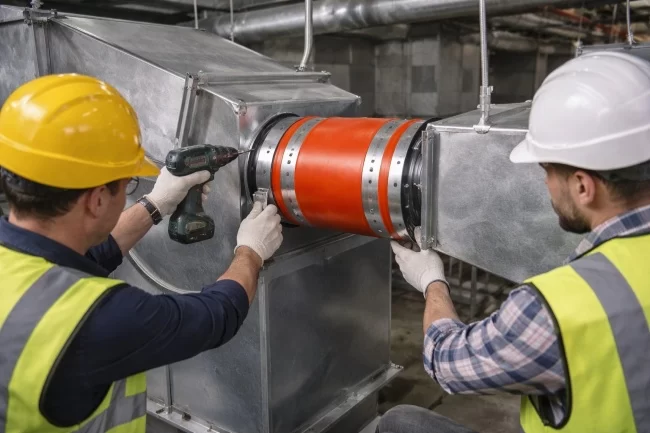

Flexible duct connector installed in an industrial HVAC ventilation system

Why Standards Matter for Flexible Duct Connectors

HVAC systems, especially in industrial settings, operate under extreme conditions. Flexible duct connectors must withstand high temperatures, pressure changes, and corrosive environments. Adhering to established standards ensures:

Safety: Preventing fire hazards and toxic fume leakage.

Durability: Ensuring the material can handle thermal stress and mechanical wear.

Performance: Maintaining air quality and system efficiency.

Non-compliant connectors can degrade quickly, leading to tears, leaks, and system imbalance. This is where understanding the material and testing standards becomes critical.

Key Standards Governing Flexible Duct Connectors

While standards may vary depending on region and application, the following are critical benchmarks for quality and safety:

1. UL 181 – Standard for Factory-Made Air Ducts and Connectors

In North America, UL 181 is one of the most important standards for HVAC duct systems.

The standard evaluates several key performance factors.

Burning Characteristics – Ensures the material is flame-resistant and does not contribute to fire spread.

Temperature Resistance – Verifies performance at elevated temperatures.

Tensile Strength and Leakage – Confirms connectors can withstand system pressure without structural failure.

2. ASTM E84 – Surface Burning Characteristics Test

ASTM E84 is an important fire safety test for materials used in ventilation systems.

The test measures flame spread index and smoke development rating. Most building codes require materials to achieve Class A or Class 1 ratings.

Materials such as silicone-coated fiberglass perform exceptionally well in ASTM E84 testing because of their natural flame-resistant properties.

3. ISO 9001 – Quality Management Certification

ISO 9001 focuses on manufacturing quality control systems rather than specific product performance.

Choosing an ISO-certified manufacturer like YEEDAH ensures consistent production processes, traceable materials, and reliable quality management.

4. Industry-Specific Standards

Some industries require additional certifications.

Marine applications often require compliance with SOLAS (Safety of Life at Sea) regulations.

Cleanroom environments require materials that are low-particle shedding, chemically stable, and non-contaminating.

Selecting connectors that meet these specialized standards is essential in controlled environments.

The Material Solution: Silicone-Coated Fiberglass

Meeting HVAC standards largely depends on choosing the correct material.

Silicone-coated fiberglass fabric has become one of the most reliable materials for high-temperature flexible duct connectors due to its exceptional heat resistance and durability.

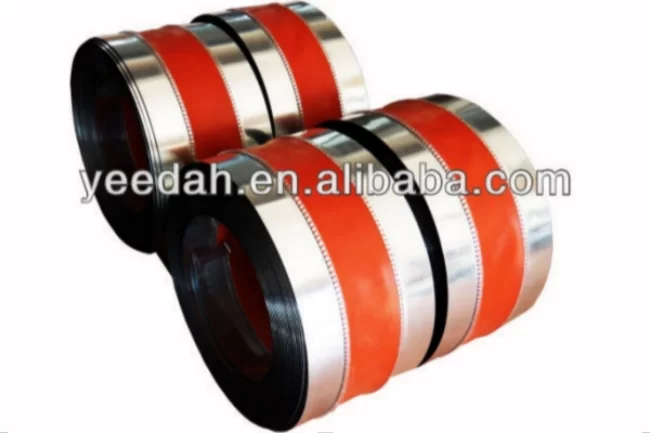

silicone coated fiberglass duct connector

How Silicone-Coated Fiberglass Meets Key Standards

Fire Safety

The silicone coating combined with fiberglass provides strong flame-resistant properties, helping materials meet UL 181 requirements and achieve excellent ASTM E84 performance.

Temperature Range

Silicone-coated fiberglass can withstand temperatures ranging from −70°C to +260°C, allowing it to perform in environments where materials such as PVC or neoprene may fail.

Durability and Flexibility

Reinforcement with spring steel wire helix and fiberglass cords improves structural strength while maintaining flexibility for installation and vibration absorption.

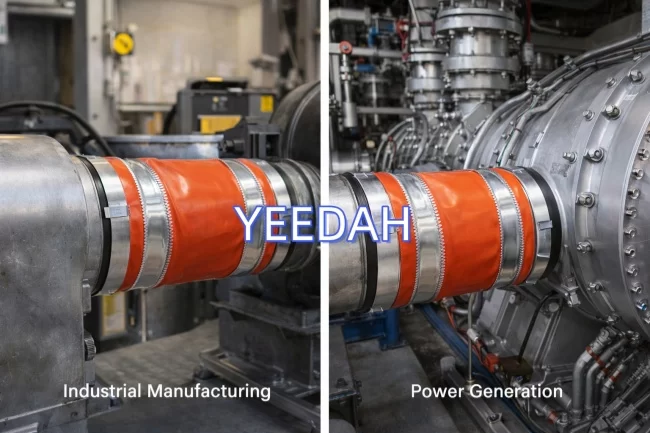

High-temperature flexible duct connector used in industrial ventilation systems

Common Applications Requiring Standard-Compliant Connectors

Flexible duct connectors that meet industry standards are widely used in demanding environments.

Industrial Manufacturing

Used to connect hot air blowers, industrial dryers, and film blowing machines.

Power Generation

Installed in turbine ventilation and exhaust systems.

Commercial Construction

Used in HVAC systems for large commercial buildings where fire safety and air quality are critical.

Robotics and Welding

Protecting cables and hoses operating near extreme heat sources.

Why Choose a Compliant Connector from YEEDAH

Working with an experienced manufacturer is essential when selecting flexible duct connectors.

At YEEDAH, we specialize in producing customizable silicone flexible duct connectors designed to meet global HVAC standards.

Our products provide reliable performance, strict quality control, and customization options to meet the specific requirements of industrial ventilation systems.

Conclusion

Understanding HVAC standards for flexible duct connectors is essential for ensuring system safety and long-term performance.

By selecting advanced materials such as silicone-coated fiberglass and partnering with a certified manufacturer, you can ensure compliance with industry regulations while improving durability and system efficiency.

Choosing the right connector protects equipment, reduces maintenance costs, and improves overall HVAC system reliability.
