Comparing Thickness and Coating Options in Silicone Coated Fiberglass for Industrial Use

Introduction

In many industrial environments, materials must withstand high temperatures, mechanical stress, and harsh chemicals. One of the most widely used solutions for these challenges is silicone coated fiberglass fabric, a composite material that combines the strength of fiberglass with the protective properties of silicone rubber.

Silicone coated fiberglass is commonly used in industries such as:

• hot air ducting systems

• welding protection

• thermal insulation jackets

• expansion joints

• fire protection curtains

The performance of this material depends mainly on two factors: the thickness of the fiberglass base fabric and the silicone coating configuration. Choosing the right combination can significantly improve durability, safety, and operational efficiency.

In this article, we compare different thickness levels and coating options of silicone coated fiberglass fabric to help engineers and industrial buyers select the best material for their applications.

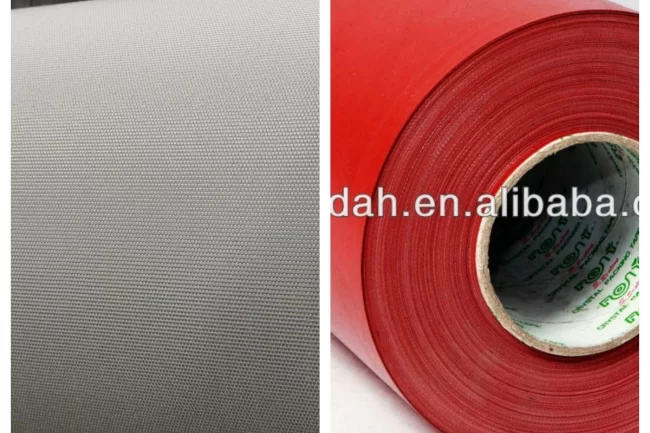

Close-up view of silicone coating and fiberglass base fabric, showing the structure and surface texture.

Understanding Silicone Coated Fiberglass Fabric

Silicone coated fiberglass fabric is manufactured by applying silicone rubber onto woven fiberglass cloth. The fiberglass base provides structural strength and heat resistance, while the silicone coating enhances flexibility, waterproofing, and chemical resistance.

• Excellent heat resistance

• Good chemical resistance

• High tensile strength

• Flame retardant performance

• Waterproof and weather resistance

Depending on the manufacturing process, silicone can be coated on one side or both sides of the fabric, allowing the material to adapt to different industrial environments.

At Yeedah, silicone coated fiberglass fabrics are available in thicknesses from 0.25mm up to 6mm, providing solutions for both lightweight flexible applications and heavy-duty thermal protection.

The Role of Fabric Thickness

Thickness is one of the most important factors affecting the performance of silicone coated fiberglass.

Different thickness levels influence:

• mechanical strength

• flexibility

• insulation performance

• abrasion resistance

Industrial silicone fiberglass fabrics typically start from thin materials around 0.2–0.3 mm and can reach thicker heavy-duty constructions depending on the application.

Below is a general comparison.

Thin Silicone Coated Fiberglass (0.25mm – 0.8mm)

Thin fabrics are designed for applications where flexibility and lightweight performance are important.

Advantages

• High flexibility

• Easy installation

• Suitable for moving systems

• Lower overall weight

Typical Applications

• flexible duct connectors

• hot air transfer hoses

• protective covers

• light insulation layers

These thinner materials allow equipment to move or vibrate without damaging the fabric.

Medium Thickness Fabric (0.8mm – 2mm)

Medium-thickness silicone coated fiberglass fabrics provide a balance between flexibility and durability.

Advantages

• Better mechanical strength

• Improved thermal insulation

• Longer service life

• Stable performance under moderate stress

Typical Applications

• insulation jackets

• expansion joints

• fire protection curtains

• industrial sealing systems

This thickness range is often used in general industrial insulation applications.

Heavy-Duty Fabric (2mm – 6mm)

For extreme industrial environments, thicker silicone coated fiberglass fabrics offer maximum protection.

Advantages

• High abrasion resistance

• Excellent heat barrier performance

• Strong mechanical durability

Typical Applications

• welding blankets

• fire barriers

• furnace insulation

• heavy equipment heat shields

Thicker fabrics are particularly important when the material must withstand continuous heat exposure or direct sparks.

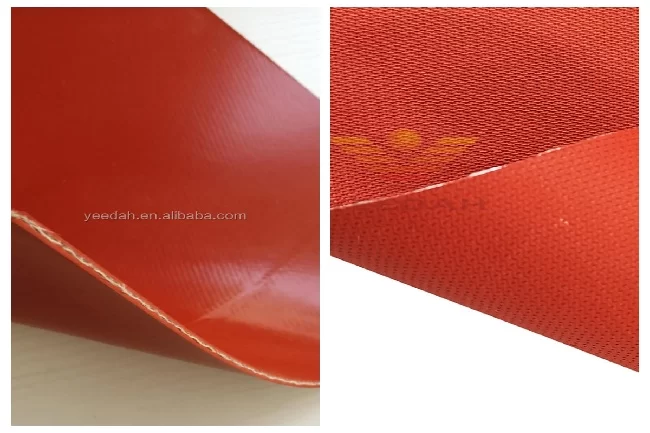

Different thickness options of silicone coated fiberglass fabric, illustrating flexibility and layered structure.

Comparing Silicone Coating Options

While thickness determines mechanical strength, the silicone coating determines how the material interacts with the environment.

Manufacturers usually offer several coating configurations.

Single-Side Silicone Coating

In this configuration, silicone rubber is applied to one side of the fiberglass fabric.

Benefits

• Lightweight structure

• Lower production cost

• Maintains flexibility on the uncoated side

Common Uses

• insulation backing materials

• protective layers

• lining for equipment covers

Single-side coatings are suitable when only one surface requires protection.

Double-Side Silicone Coating

Double-side coated fabrics have silicone layers on both surfaces of the fiberglass cloth.

Benefits

• enhanced waterproof performance

• higher abrasion resistance

• better chemical resistance

• improved durability

Typical Applications

• expansion joints

• industrial ducting systems

• high-temperature insulation covers

• fire protection systems

Because both sides are protected, double-coated fabrics perform better in harsh industrial environments.

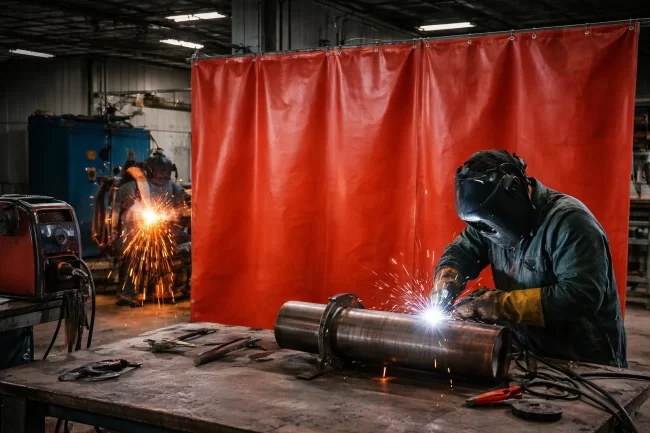

Silicone coated fiberglass fabric used as welding protection curtain in high-temperature industrial environments.

Finding the Right Balance Between Thickness and Coating

In real industrial applications, thickness and coating options must be considered together, not separately.

Here are some common scenarios:

Selecting the right configuration ensures longer service life and improved operational safety.

Why Industries Choose Silicone Coated Fiberglass

Silicone coated fiberglass fabrics are widely used because they combine thermal stability with mechanical strength.

Key advantages include:

• resistance to temperatures up to around 230–260°C for silicone coatings depending on formulation

• excellent chemical and moisture resistance

• durability in harsh industrial environments

• flexibility for custom fabrication

These features make the material suitable for applications in:

• power plants

• metal processing industries

• chemical facilities

• aerospace manufacturing

• industrial ventilation systems

Yeedah Silicone Coated Fiberglass Solutions

With extensive experience in high-temperature composite materials, Yeedah provides silicone coated fiberglass fabrics designed for demanding industrial applications.

Our products feature:

• thickness range: 0.25mm – 6mm

• single-side or double-side silicone coatings

• customizable width and colors

• solutions for insulation, ducting, and fire protection

By combining advanced fiberglass fabrics with high-quality silicone coatings, Yeedah delivers materials that meet the requirements of modern industrial systems.

Conclusion

Selecting the right silicone coated fiberglass fabric requires understanding the relationship between fabric thickness and silicone coating configuration.

Thickness determines strength, flexibility, and thermal insulation performance.

Coating options affect durability, waterproofing, and chemical resistance.

By carefully balancing these two factors, industries can optimize equipment protection, improve operational efficiency, and extend the service life of high-temperature systems.

For projects requiring reliable thermal protection and flexible industrial materials, silicone coated fiberglass remains one of the most effective solutions available today.
